In the field of maintenance and testing of electronic components, resistors are a basic and critical component, and accurate measurement of their performance is crucial to ensuring the normal operation of electronic equipment. This article aims to deeply explore the correct steps for resistor measurement and the key matters that should be paid attention to during the process, so as to provide a systematic methodology to help technicians and enthusiasts more accurately judge the performance status of resistors.
Determine the range and zero adjustment operation
Before measuring resistance, you first need to select an appropriate range based on the resistance range of the resistor being measured. The correct selection of the range can make the pointer of the multimeter indicate in the middle of the scale line, which not only facilitates observation of readings, but also improves the accuracy of measurement. After the range is determined, zeroing is another important step. By short-circuiting (direct contact) the two test leads, adjust the zero adjustment knob of the instrument so that the pointer accurately points to the "0" position of the Ω scale, thereby ensuring the accuracy of subsequent measurements. During the measurement process, you should avoid direct contact with the two ends of the resistor or the metal part of the multimeter pen with your hands to prevent the human body resistance from affecting the measurement results and introducing errors.
Visual inspection and multimeter testing

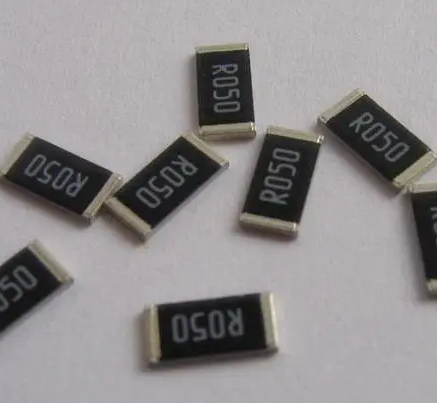

Before specific measurement operations, visual inspection of the resistor is a basic and necessary step. For fixed resistors, check whether the markings are clear and whether the protective paint is intact. At the same time, pay attention to whether there are burns, scratches, cracks or corrosion to ensure close contact between the resistor body and the pins. For potentiometers, in addition to the above inspection items, it is also necessary to verify whether the rotating shaft is flexible, whether the tightness is appropriate, and whether it feels comfortable. For potentiometers with switches, it is also necessary to check whether the switch is working properly.
When there is no abnormality in the appearance inspection, measuring the resistance value with a multimeter is a key step in judging the performance of the resistor. For fixed resistors with different resistance values, it is important to choose the appropriate multimeter range. The analog multimeter should choose a range that makes the needle deflection angle larger to facilitate the accuracy of readings. If the measurement results are outside the normal error range of the resistor, or if the resistance appears to be infinite, zero, or unstable, the resistor may be damaged.
In actual operation, special attention should be paid not to use a multimeter to measure when the circuit is electrified to avoid damaging the instrument or causing safety accidents. For online detection, the power should be cut off first and the resistor should be disconnected from the circuit to ensure the accuracy of the measurement.
Detection of special resistors
The measurement methods are also different for special types of resistors such as fuse resistors and sensitive resistors. The detection of fuse resistance focuses on determining whether it is blown, which is usually determined by measuring whether the resistance value is infinite. As for the thermistor, according to its positive temperature coefficient (PTC) or negative temperature coefficient (NTC) characteristics, you can judge whether it is normal by changing the temperature and observing the change in resistance. The test of photoresistor requires measuring the resistance value with and without light, and evaluating its performance through the change in resistance value.
Conclusion
Through the above detailed discussion of steps and precautions, we provide a complete methodology for resistor performance testing. This not only helps technicians and electronics enthusiasts improve the accuracy of measurements, but also provides important technical support for the maintenance and repair of electronic equipment. Correct measurement methods and careful operation can effectively avoid common measurement errors and ensure the stable operation of electronic equipment.
